HomeAll productsSwitchesCudy 16 Port Gigabit Unmanaged Metal Switch - Rack Mount
CudySKU GS1016

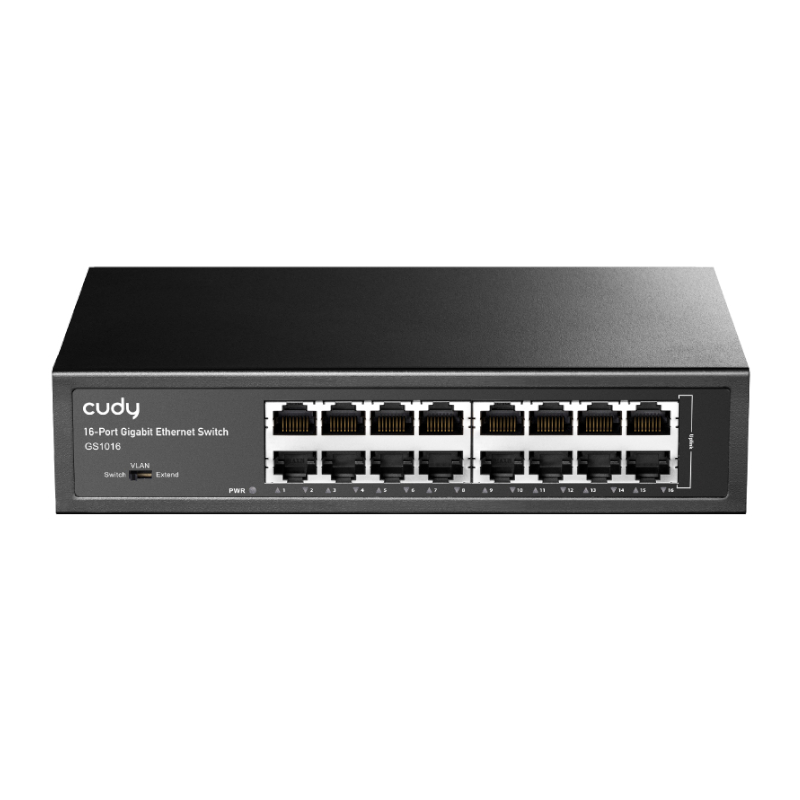

Cudy 16 Port Gigabit Unmanaged Metal Switch - Rack Mount

The Cudy 16-Port Gigabit Ethernet Switch is a great way to expand and manage your network. It provides a variety of installation methods for easy deployment in any environment. It supports both 8-inch rack-mounted steel cases as well as desktop installations making it very versatile. Designed for either the home or the office, this 16 port ethernet switch can easily be connected to your router, printer, monitor, PC, camera, gaming console or access point. Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work more reliably. The Ethernet Switch allows you to save power up to 40%. The GS1016 uses green Ethernet technology to make your network more compatible without compromising performance. The switch automatically powers down the ports that are idle and can budget power output for different Ethernet cable lengths. FEATURES: Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards 16 10/100/1000Mbps Auto-Negotiation, Auto MDI/MDIX ports provide smart switching abilities Non-blocking switching architecture enables full wire-speed packet forwarding and filtering Store-and-Forward switching method Supports 8K MAC address auto-learning and auto-ageing

R 699VAT included
1

Currently unavailableNot available to order right now

Delivered nationwideDoor-to-door, anywhere in South Africa

2 YearLocal support

Details

Product details

    Brand
    Cudy
    SKU
    GS1016
    Warranty
    2 Year
    Power Supply
    Built-in power supply
    Voltage Range
    Ac100~ 240V
    Consumption
    <15W
    Speed
    1-16 Port: 10/100/1000Mbps
    Transmission Distance
    100Meter (328ft)
    Ethernet Standard
    IEEE 802.3/802.3u / 802.3ab
    Switching capacity
    32G
    MACAddress
    8K MAC address table
    VLAN (1-14Ports)
    Port Isolation: Downlink designated ports are isolated from each other, only transmit data with the uplink port.
    Default
    Standard Switch: All ports communicate freely
    Extend (1-14Ports)
    Link Extension: The specified port speed drops to 10Mbps, max transmission distance is 250 meters.
    LINK/ACT
    On: Green – The port is connecting
    Blinks
    / – The port is receiving or transmitting data
    Off
    / – The port is not linked successfully with the device
    Transfer Rate
    14,880pps for 10Mbps
    Environment
    Operating Temperature: 0℃ ~ 40℃
    Storage Temperature
    -40℃ ~70℃
    Operating Humidity
    10%~85% non-condensing
    Storage humidity
    5%~85% non-condensing
    Product Dimensions
    20 x 11.8 x 4.4 cm
